EL-O-Matic Speed Control Plate

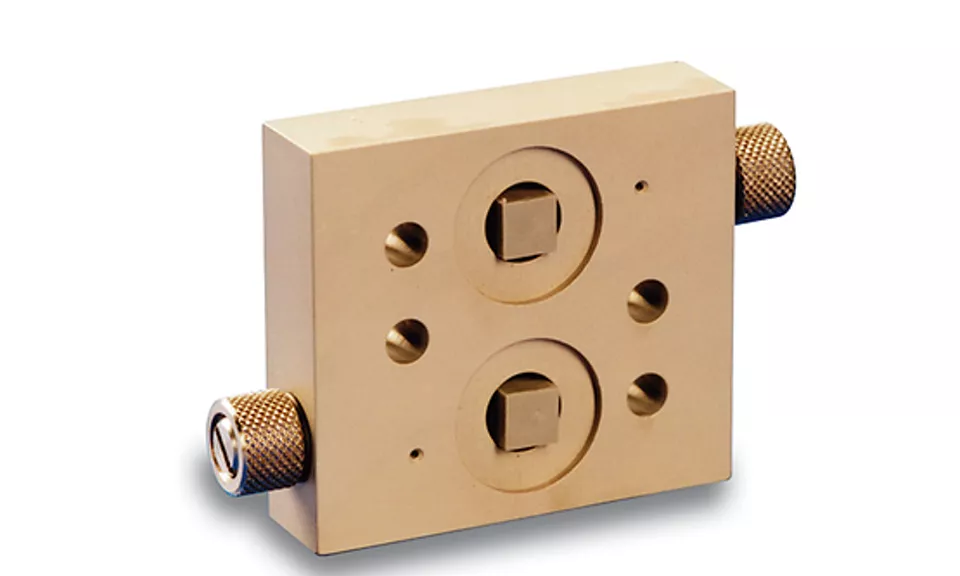

The EL-O-Matic VP speed control plate is specially used where ordinary NAMUR style solenoid valve miss a speed control throttles. The speed control plate provides a speed regulating function (throttling) for both double and spring return actuators with a NAMUR air entry manifold in combination with a NAMUR solenoid. Both the flow restrictors are independently adjustable for both strokes. On spring return actuators, only the spring return stroke time can be regulated.
Fallback image

Features

  • Can be used where default flow restrictor of direct mounted NAMUR solenoids will cause a malfunction
  • Can be used with direct mounted NAMUR solenoids that have not built-in flow restrictors.
  • Suitable for double or single acting rotary actuators.
  • Independently adjustable for both strokes
  • Durable hard anodize aluminium design.
  • Easy operation.

Specifications

Power Source

Pneumatic

Product Type

Accessories

Actuation

Quarter-turn

Certifications

This product is only intended for use in large-scale fixed installations excluded from the scope of Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS 2).

Control Type

On/Off

Valve Type

Ball, butterfly, plug and any other quarter turn application

Operating Temperature

-20°C to +80°C (-4°F to +176°F)

Operating Pressure

up to 8.3 bar / 120 psi
