EL-O-Matic 180° P-Series Rack and Pinion Pneumatic Valve Actuator

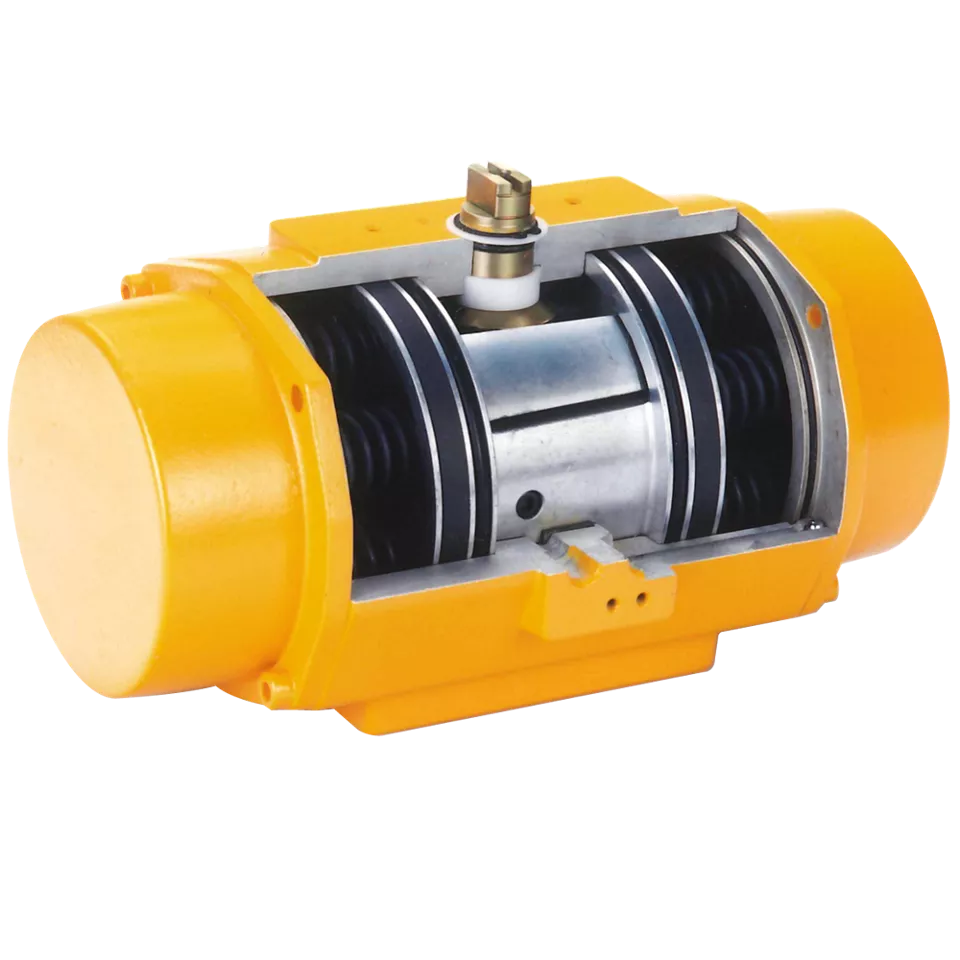

The EL-O-Matic 180° P-series is a rack & pinion actuator, available in 8 sizes as spring return or double acting models. The 180° P-series actuator are typical used on 3- or 4-way ball valves with a 180° rotation function. The use of high-grade steel and aluminum components together with EL-O-Matic's patented 3-point piston support provides a tough reliable unit for the automation of 180° rotation applications. Modern synthetic bearings ensure no metallic contact between moving components.
Fallback image

Features

  • Single and double acting actuators in 8 sizes, ranging from 29 Nm to 2061 Nm (256 to 18,241 lbf.in).
  • Fit and Forget robust, corrosion resistance design assuring a long cycle life
  • Easy to install actuator which functions faithfully giving many years of dependable performance.
  • The zinc plate carbon steel pinion, provides the best combination of corrosion resistance, high strength and a lightweight construction.
  • Modular construction allows easy spring or action changes.
  • All actuators have mounting flanges and drives to ISO 5211 and allow easy integration on most valves.
  • The actuators solenoid and top mounting interface allows the actuator to be packaged with a wide range of controls and accessories.
  • EL-O-Matic 180° P-series actuators can be equipped with “L1” limit stops limiting the outward stroke. 120° or 135° rotation is possible with optional “LF” full stroke adjustment option.

Specifications

Power Source

Pneumatic

Product Type

Pneumatic Rack and Pinion Actuator

Actuation

180° Rotation

Certifications

ATEX, PED and Machinery Directives

Control Type

On/Off, Positioning, Modulating

Valve Type

3- or 4-way Ball valves and any other 180° application

Operating
Temperature

Standard -20°C to +80°C (-4°F to +176°F).

Optional high and low temperature options

Torque

8 sizes: 12 Nm to 4100 Nm (106 lbf.in to 36,474 lbf.in)

Operating Pressure

up to 6 bar / 87 psi
