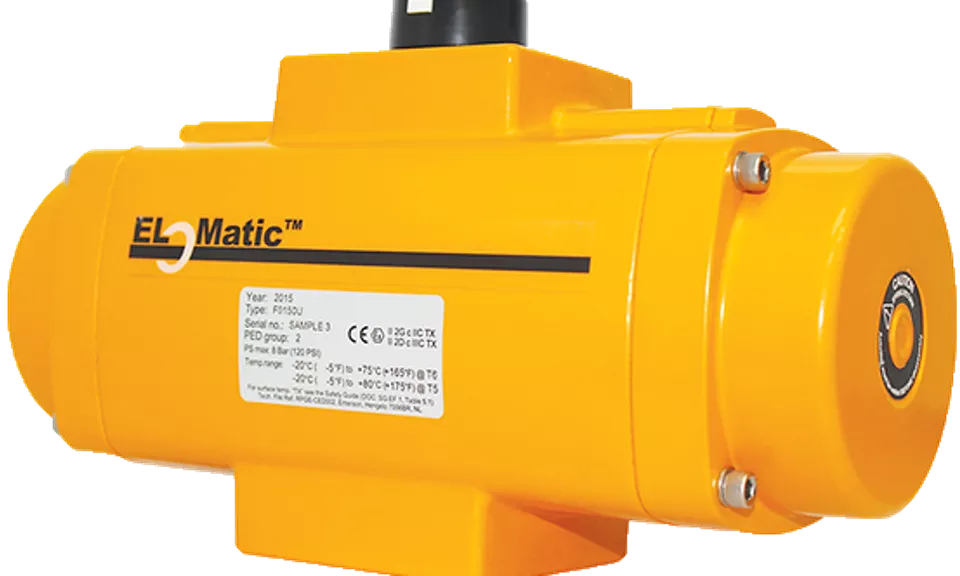

EL-O-Matic F-Series Rack and Pinion Pneumatic Valve Actuator

The EL-O-Matic F-series is a rack & pinion actuator, available in 13 sizes as spring return or double acting models. The actuator's “Fit & Forget“ design provides the optimum performance for a wide range of quarter turn valve applications. The EL-O-matic F-series are powder coated and comes with a special high corrosion resistant aluminum pinion design and stainless steel fasteners, resulting in a long lasting durable actuator design.
Fallback image

Features

  • With single and double acting Actuators in 13 sizes, ranging from 12 Nm to 4100 Nm (106 to 36,474 lbf.in).
  • Fit and Forget robust, corrosion resistance design.
  • Easy to install actuator which functions faithfully giving many years of dependable performance.
  • The hard anodized high grade aluminum (7075 T6) pinion, provides the best combination of corrosion resistance, high strength and a lightweight construction as well as providing protection against galvanic corrosion.
  • Modular construction allows easy spring or action changes.
  • Dual valve flange drilling patterns and interchangeable drive inserts allows for direct mounting capability and reduces the need for valve mounting kits.
  • Compliance to NAMUR interface standard allows the actuator to be packaged with a wide range of accessories.
  • Dual Stroke Adjustment allows easy setting of the valve stroke which prevents premature valve failures.
  • Construction with standard components for delivery in a variety of frequently used configurations.

Specifications

Power Source

Pneumatic

Product Type

Pneumatic Rack and Pinion Actuator

Actuation

Quarter-turn

Certifications

ROHS3, REACH, ATEX, PED and Machinery Directives, SIL3, IP66/67

Control Type

On/Off, Positioning, Modulating, ESD

Valve Type

Ball, butterfly, plug and any other quarter turn application

Operating
Temperature

Standard -20°C to +80°C (-4°F to +176°F).
Optional high and low temperature options

Torque

13 sizes: 12 Nm to 4100 Nm (106 lbf.in to 36,474 lbf.in)

Operating Pressure

up to 8.3 bar / 120 psi

Documents & Drawings

Acknowledgement of Receipt: ATEX 2014/34/EU
English675.6 KB.pdf
Acknowledgement of Receipt: UKCA
English227.1 KB.pdf
Declaration of Conformity: ATEX/PED/MD
English184.5 KB.pdf
Declaration of Conformity: REACH/ROHS2/ROHS3
English358.8 KB.pdf
Declaration of Conformity: UKCA
English218.6 KB.pdf
SIL 3 Certificate - Elomatic F Series (Large Size)
English128.8 KB.pdf
SIL 3 Certificate - Elomatic F Series (Small Size)
English117.6 KB.pdf
Type test: EL-O-Matic F-Series according - NAMUR NE95
English1.4 MB.pdf

Videos

video-media
EL-O-Matic F Series Video: Clockwise to Counter Clockwise Rotation
Now Playing
Media Thumbnail
 00:03:29
EL-O-Matic F Series Video: Clockwise to Counter Clockwise Rotation
Media Thumbnail
 00:02:26
Spring Set Conversion of El-O-Matic F-Series Pneumatic Actuator
Media Thumbnail
 00:04:13
EL-O-Matic F-Series Pneumatic Actuators
